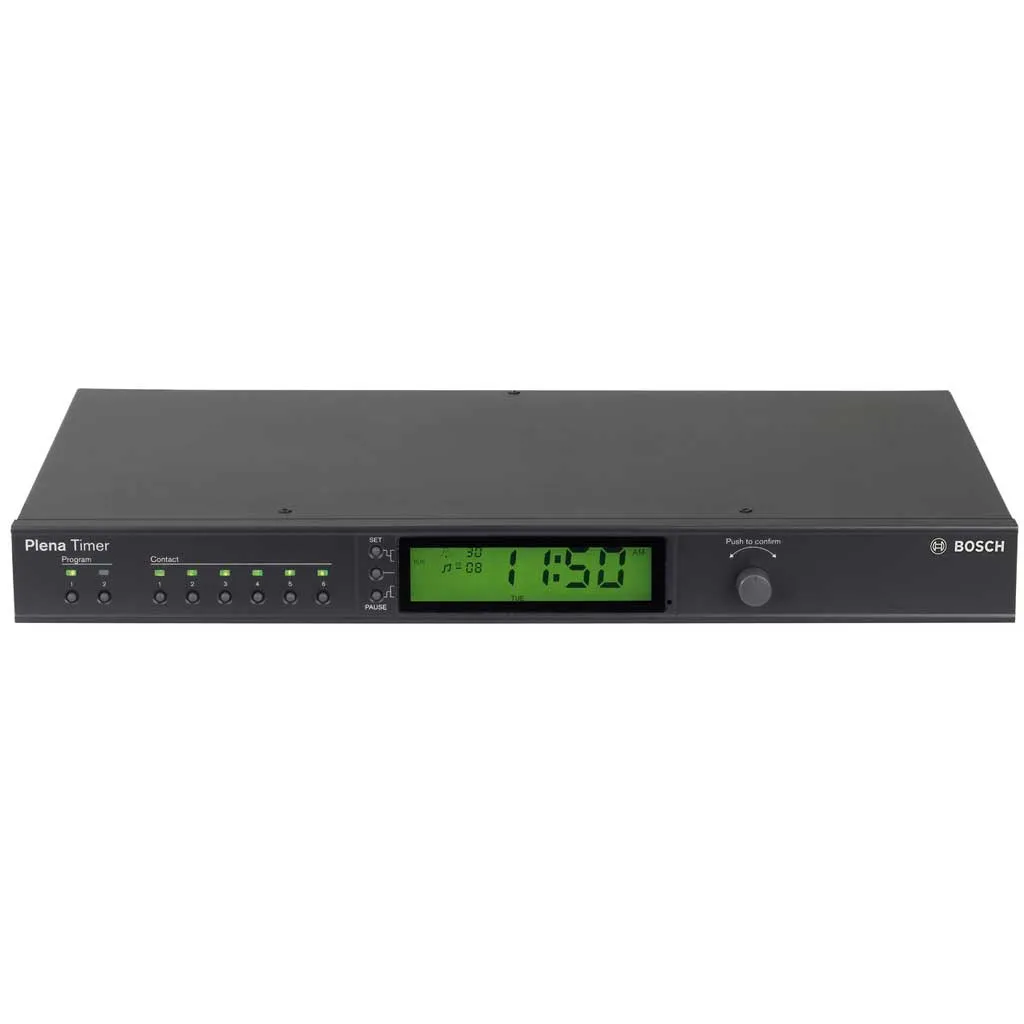

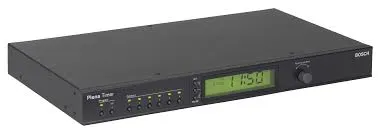

Plena Weekly Timer 6TMW
Product Features
- Two weekly programs
- 14 Chimes
- Six contact outputs
- Automatic daylight/standard time
- BGM level control
Technical Specification
| Mains power supply | |
| Voltage | 230/115VAC, ±15%, 50/60 Hz |
| Max power consumption | 30 W |
| Battery power supply | |
| Voltage | 24 VDC, 15% / -15% |
| Current max | 1 A |
| Performance | |
| Frequency response | 20 Hz to 20 kHz (-3 dB) |
| Total harmonic distortion | < 0.01 % (1kHz) |
| S/N | <85 dB |
| Dynamic range | >100 dB |
| Line input | 1 x |
| Connector | XLR balanced |
| Sensitivity | 1 V |
| Impedance | >5 kohm |
| Headroom | >25 dB |
| Line output | 1 x |
| Connector | XLR balanced |
| Impedance | >100 ohm |
| Clock | |
| Accuracy (without sync) | 25 ºC: better than <2 s/month -10 ºC to 55 ºC: <3.5 s/month |
| Sync input | NO, contact closure synchronizes to the nearest hour |
| Output contacts | |
| Connector | MC 1,5/6-ST-3,5 |
| Rating | 100 V, 1 A, voltage free |
